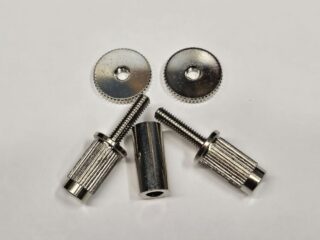

Material: Studs, Bell Brass, plated; Thumbwheels, Brass, plated
Weight, with thumbwheels: .885 oz./25.1g
Overall length: 1.25” / 31.75mm
Length below flange: .55” / 14.0mm
Stud length, above flange: .59” / 15.0mm
Diameter, lower section: .296” / 7.52mm
Flange diameter: .393” / 10mm
Flange thickness: .061” / 1.55mm
Thumbwheels:

• Diameter: .63″/16mm
• Thickness: .11″/2.8mm
